Smartphone Thermal Navigation

                            Torchlight©

                             An Assistive Tool To Locate People and Objects With A Multimodal Thermogram Interface

Project Description

The objective of Torchlight is to give a blind/low vision user practical navigation and interaction information about their environment from a multimodal thermogram (thermal image) interface on a smartphone. To address the challenge of creating an interface that both provides practical utility and that will be accepted by the target demographic, ASTER Labs, Inc., in partnership with Moai Technologies, LLC has collaborated with the University of Maine.

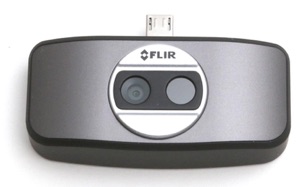

NSF funded research conducted in the University of Maine’s lab led to extremely promising results in the development and evaluation of new vibro-tactile and auditory interfaces for supporting blind accessibility on touchscreen tablet and smartphone devices. They have conducted approved human studies at this lab as part of Phase I and Phase II research. The outcome, Torchlight, is an innovative assistive device that uses heat radiated by people, machines and materials that retain heat to provide useful information to blind and low vision users. This capability is recently made practical by the commercial availability of low cost thermopile arrays.

Societal Benefits

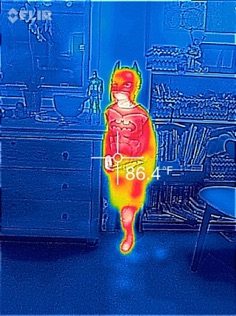

The societal benefit of this innovation is significant. The assistive use by blind people of thermal imaging could potentially be just as significant a tool as Global Positioning System (GPS) and handheld computing have been. Thermal imaging can differentiate people and objects from their background without the need for complex image analysis. The shape and the temperature of the human body allows the location of people to be easily determined.

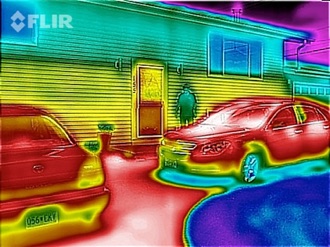

In complex public spaces a blind person can use a smartphone’s haptic touchscreen display to examine the thermal image to determine the location of people in front of them. Information about the layout of an unfamiliar public space can be learned from the heat and shape of materials. Indoor spaces often have hot ceiling lights arranged in a regular pattern that defines the shape and size of the room. Most machines generate waste heat that can be used to locate them. (e.g. vending machines, ATMs)

Broader Impacts

This project goes beyond assistive use of thermal technology for blind users. This technology has a societal impact by improving the quality of life and autonomy for the blind in the same way that GPS and handheld computing has done. Information about the layout of an unfamiliar public space can be learned from the heat and shape of materials, which assists blind users in work environments or everyday activities.

With the global proliferation of smartphone usage and an aging population, the commercial market for this assistive product will continue to see strong growth in the future. Now that the technology for low cost thermal imaging on a smartphone has been developed, the market for sighted users could benefit from numerous related applications as well. For example, various commercial industries could benefit from low cost thermal imaging on a smartphone that can communicate data wirelessly through a cellular network. Industry examples might include: manufacturing, petrochemical installations, construction, electrical systems, food packaging, or agriculture applications. The commercial market for applications used by sighted people could exceed the commercial market for blind users.
